Effortless Usability,

Uncompromising

Performance

horizontal stripe

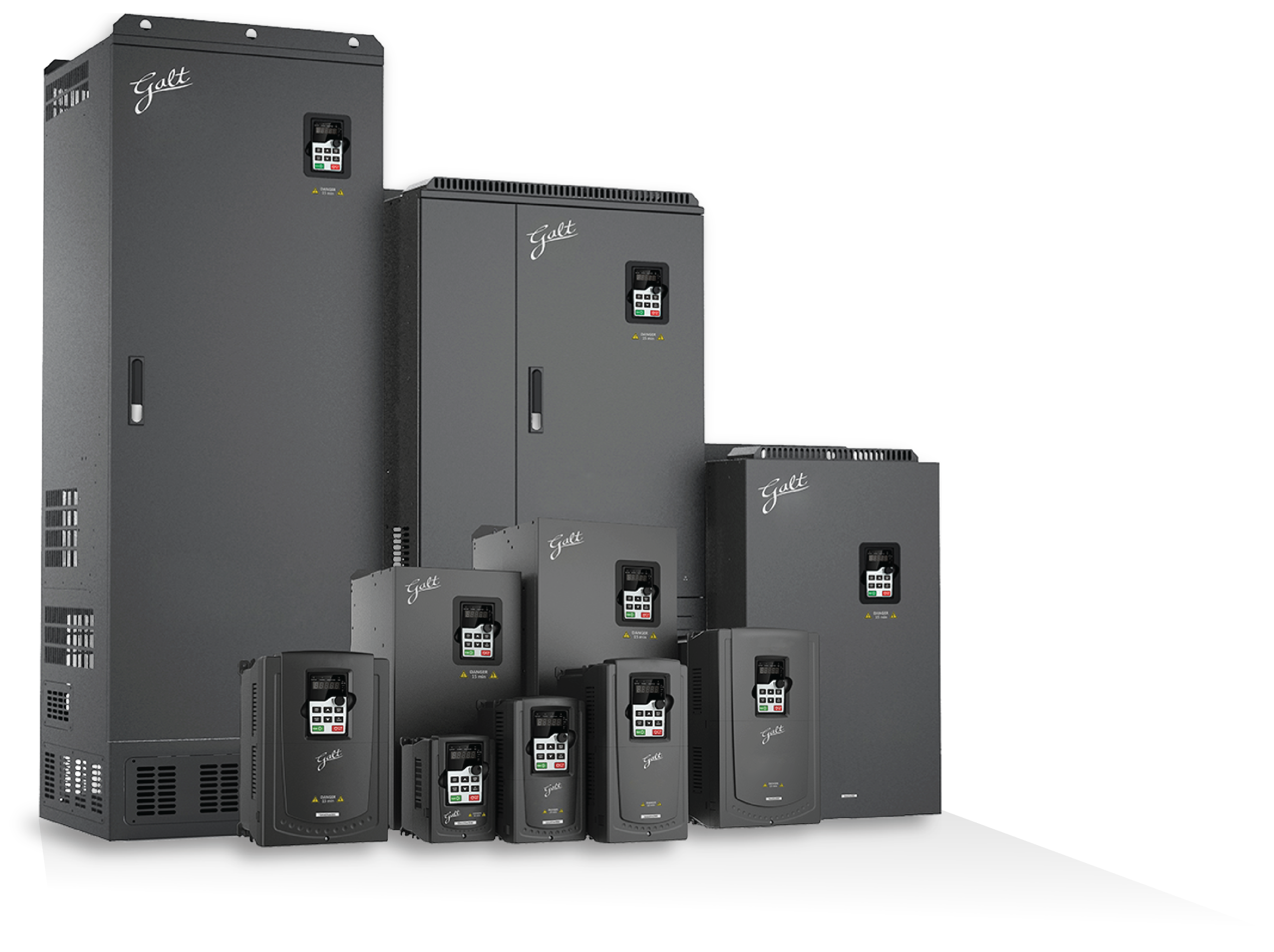

WHICH DRIVE IS FOR YOU?

    G200 G300
Power Voltage Class 240V, 480V 240V, 480V, 575V
Phase 1-Phase, 3-Phase 3-Phase
Horse Power 1 to 50HP 1 to 600HP
Input Frequency 50 or 60Hz 50 or 60Hz
Output Frequency 0 to 400Hz 0 to 400Hz
Overload Rating 150% (1 minute) 120% (1 minute)
180% (10 seconds) 150% (1 minute)
200% (1 second) 180% (10 seconds)
  200% (1 second)
Features Braking Unit Built-in for 480V (≤40HP) Built-in for 480V (≤40HP)
EMI Filter C3 C3
PID Functions Yes Yes
32-Bit DSP Processor No Yes
Short-Circuit Braking Yes Yes
Control Mode SVPWM, Sensorless Vector Control SVPWM, Sensorless Vector Control
Communications Communication Protocol MODBUS MODBUS, PROFIBUS
Hardware Analog Input One (AI2) 0∼10V/0∼20mA Two (AI2) 0∼10V/0∼20mA
One (AI3) -10∼10V One (AI3) -10∼10V
Analog Output Two (AO1, AO2) 0∼10V/0∼20mA Two (AO1, AO2) 0∼10V/0∼20mA
Digital Input 4 Common Inputs, Max Freq:1kHz 8 Common Inputs, Max Freq:1kHz
1 High Speed Input, Max Freq: 50kHz 1 High Speed Input, Max Freq: 50kHz
Digital Output 1 Y1 Terminal Output 1 Y1 Terminal Output
  1 High Speed Pulse Output
Relay Output 2 Programmable Relay Outputs 2 Programmable Relay Outputs
Operations Display Mono LCD (Color LCD Optional) Mono LCD (Color LCD Optional)
Mounting Method Wall or Rail Mount Wall or Rail Mount
Operating Temperature -10∼50°C, derate above 40°C -10∼50°C, derate above 40°C
Altitude 1000 meters 1000 meters
Enclosure Rating IP20 IP20
Compliance Standards UL Listed UL Listed
